Farrlrry Air Pleated Filtration Cartridges Filters

FOB Reference Price:Get Latest Price
US $10-100 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Industry dust Collector
Efficiency:
99.5
Minimum Particle Size:
0.3/5 micron
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Farrleey
Model Number:
Depend
Dimension(L*W*H):
Depend
Weight:
Depend
Certification:
ISO9001:2015
Name:
Air peated filtration cartridges filters
Length:
500-2000mm
Top & bottom end cap:
Rubber/Metal
Design:
Easy to replace
Color:
White
Application area:
Cement industry...
Loading port:
Huangpu/Yantian
Delivery:
5-7days
Remarks:
Replace bags and cages
After-sales Service Provided:
No overseas service provided
Warranty:
6 Months
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Each product with an inner plastic film and an outer carton.
Port
China Seaport
Lead Time :
5-7 Days
Product Description

Product Description

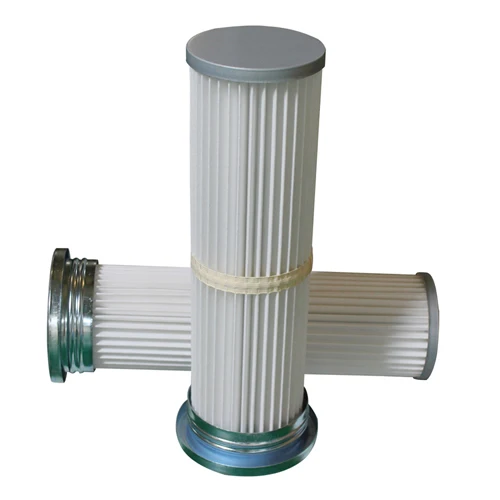

Item: Farrlrry Air Pleated Filtration Cartridges Filters



Product Descriptions:

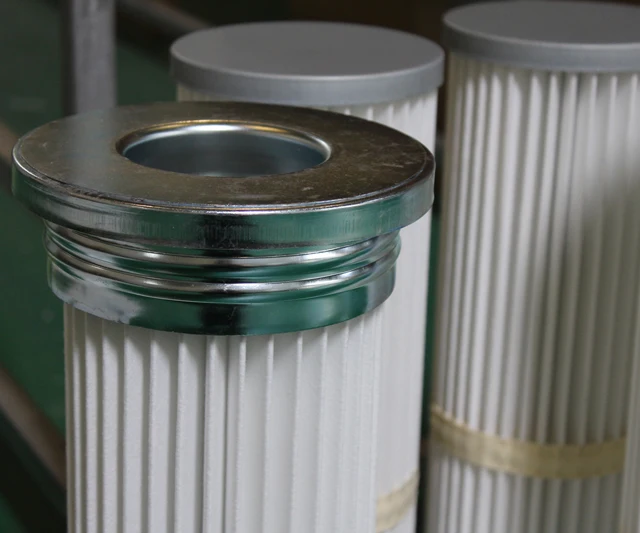

1) Unique plastic coating anti-rust caps and metal frame

2) Lug flange or PU cap installation methods

3) Wide pleat spacing ,easy-cleaning design

4) Optional stainless steel mesh and end caps

5) Optional temperature at 130 °C

6) Optional the Venturi tube available





Product Advantages:

1) The most professional manufacturer of filter cartridge apparatus in China;

2) One of the suppliers that passed Andrew certification in China;

3) The quality of our PU material is the same with GE products.



Application fields:

Mainly suitable for cement industry, silo transmission of mixing station,cement in bulk,stack,ingredient dedusting.





Dimensions:







Selection of materials:

1) HL/PE Typial spunbonded polyester;

2) HL/LR  Water & oil repllent;

3) HL/AL  Antistatic coating;

4) HL/FM  PTFE membrane;

5) HL/HV  Typical Cellulose;

6) TE/FM  Donaldson Tetratex PTFE membrane polyester.



CodeWeightThickness Filter PrecisionContinuous TemperaturePeaks Temperature
(g/m²)(mm)   (µm)
HL/PE1700.455(μm)65 (°C)130 (°C)
2400.6
2600.64
HL/LR1700.455(μm)65 (°C)130 (°C)
2400.6
2600.64
HL/AL2400.65(μm)65 (°C)110 (°C)
2600.64
2400.6
HL/FM1700.450.3(μm)65 (°C)130 (°C)
2400.6
2600.64
HL/HV1250.35(μm)65 (°C)65 (°C)
TE/ FM240-3400.33-0.830.3-5(μm)135 (°C)

135(°C)





Company Information

Company Profile

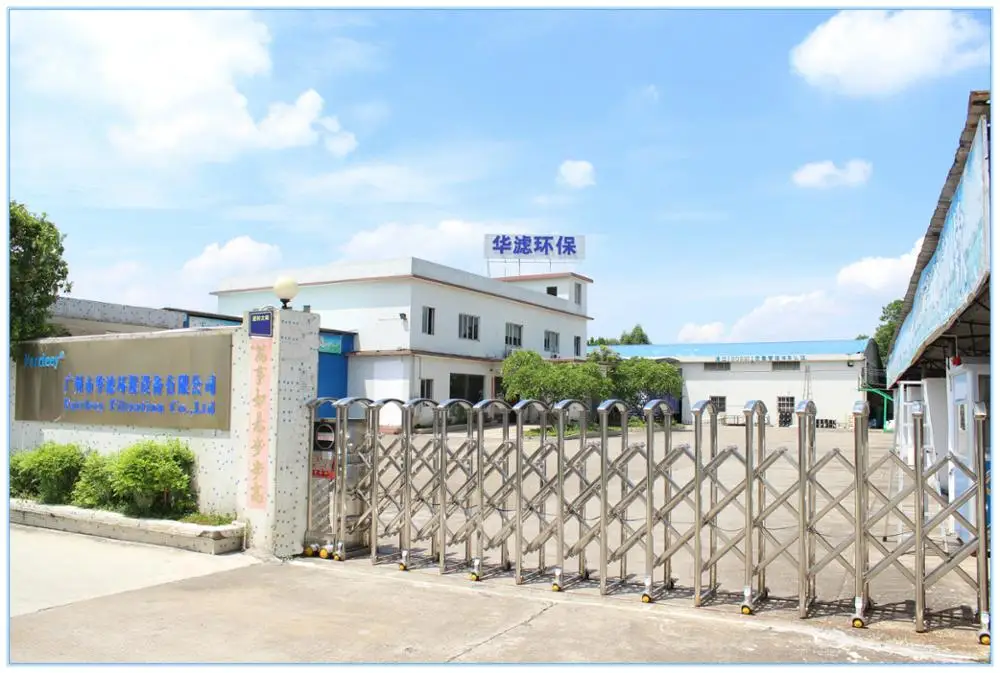

Farrleey filtration co., ltd is established in 2007,located in Guangzhou, China .And sets up branches in Shanghai and Beijing ,Concentrates on R&D, production, sales and service of collector, dust filter cartridge and filter bag, we not only provide filtration products, but also comprehensive solutions of filtering technology.
