Polyester needle felt pleated bag cartridge

FOB Reference Price:Get Latest Price
US $10-100 / Pieces | 10 Piece/Pieces (Min. Order)
Model Number:
CRT200125
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Farrleey
Certificate:
ISO9001:2015
Filter material:
Polyester
Normal temperature:
65(℃)
Highest Temperature:
110(℃)
Top & bottom material:
PU/Silicone
Length:
300-4000mm
Cell plate size:
125/128/130/133/150/155/154/159/160/162/170/190/206mm
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
4000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton/Pallet
Port
China seaport
Product Description

Product Application

Mainly used in high dust concentration plants such as cement,power plant,casting plant,etc

SPECIFICATIONS FOR SQUARE CAP FILTER CARTRIDGE

Basic information
Filter Media
Polyester needle felt
Anti-static polyester needle felt
Weight/Tolerance(g/㎡)
350±8%
350±8%
Thickness(mm)
1.1±10%
1.05±10%

Main performance parameters

Post-treatment
Heat Set + Singed double Side+PA Treatment
Heat Set + Singed double Side+PA Treatment+Anti-static scrim
Air Permeability
170±25% dm3/dm2/min@20mmH2O
190±25% dm3/dm2/min@20mmH2O
Top&bottom material
PU/Silicon/Stainless Steel
PU/Silicon/Stainless Steel

Chemical properties
Surface ResistivityAverage
N/A
≤10^8Ω
Normal temperature
130(℃)
130(℃)
Highest Temperature
150(℃)
150(℃)

Main Features

1) Unique plastic coating anti-rust caps and metal frame;
2) Lug flange or PU cap installation methods;
3) Wide pleat spacing ,easy-cleaning design;
4) Optional stainless steel mesh and end caps;
5) Optional temperature at 130 °C;
6) Optional the Venturi tube available.

Certifications
Detailed Images


Name: Inner Core

Brand: Farrleey

Original: China

Helix perforated meta inner core,expanded metal inner core,plastic inner core are available, good corrosion resistance,and guarantee a good air permeability.




Name:Top & Bottom Cap
Brand: Farrleey
Original: China

Polyurethane,stainless steel,galvanized metal or silicon are available as top & bottom cap material.top open ,bottom closed.


Name: Filter Media
Brand: Farrleey
Original: China

Polyester needle felt,oil & water resistant polyester needle felt,anti-static polyester needle felt,PTFE membrane polyester needle felt are available as filter media.

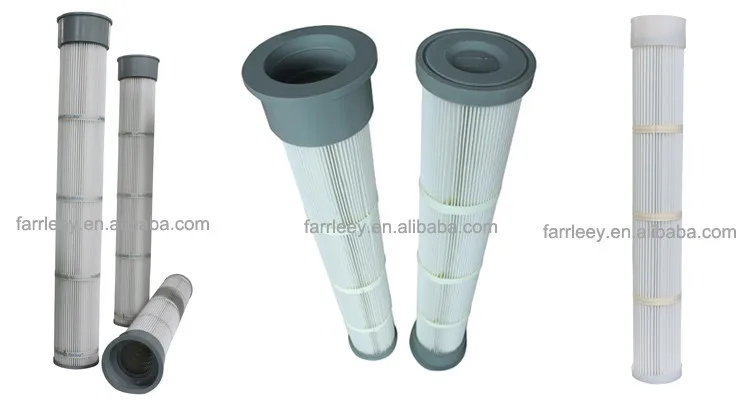

Name: Filter Cartridge
Brand: Farrleey
Original: China

Fit most standard tube sheet designs,replacing for bags and cages directly,narrow pleat spacing,easy-cleaning design and high filtration efficiency,2-3 times filtration area than filter bags.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our factory.

After-Sales Service

* Training how to install the filter cartridge

* ........

Packing & Delivery
Packaging
Pallet  Size
120(L) * 120 (W) * 218(H)mm
Weight
Depend



Packaging Details



The normal package is carton,we will pack it with carton and plastic pallet or pack it according to customers special request.
Packaging
Pallet Size
120 (L) * 120 (W) * 218(H)mm
Weight
Depend



Packaging Details



The normal package is carton,we will pack it with carton and plastic pallet or pack it according to customers special request.
