Farrleey PPS High Temperature Pleated Filter Bag

FOB Reference Price:Get Latest Price
US $10-100 / Pieces | 10 Piece/Pieces (Min. Order)
Model Number:
PGW200162/PGW200159/PGW200133/PGW400162
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Farrleey
Certificate:
ISO9001:2015
Material:
PPS
Normal temperature:
180(℃)
Highest Temperature:
200(℃)
Top & bottom material:
Galvanized steel/Stainless steel
Application:
High Temperature Pleated Filter Bag
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
4000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton/Pallet
Port
China seaport
Product Description

Product Application

Cement, power plant ,foundry ,smelt and waste incineration

SPECIFICATIONS FOR SQUARE CAP FILTER CARTRIDGE

Basic information
Filter Media
PPS Felt
Aramid Felt
Post-treatment
Heat Set + Singed double Side+PA Treatment
Heat Set + Singed double Side+PA Treatment
Length
500-4000mm
500-4000mm

Main performance parameters
Weight/Tolerance):(g/m2/%)
350±8%
350±8%
Cell Plate Size
133mm,159mm,162mm
133mm,159mm,162mm
Top&bottom material
Galvanized steel/ Stainless steel
Galvanized steel/ / Stainless steel

Chemical properties
Air Permeability
200±25%
170±25%
Scrim
Selfsupport
Selfsupport
Thickness(mm)
1±10%
1.15±10%

Main Features

1) Efficiency:99.99%
2) Filtration Grade:Hepa Filter

3) Top&bottom Material: Galvanized steel
4) Brand Name:Farrleey
5) Filtering precision:0.3μm

Certifications
Detailed Images

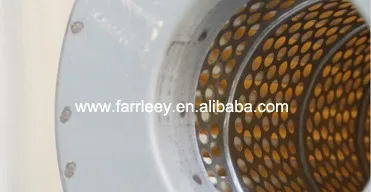

Name: Inner Mesh

Brand: Farrleey

Original: China

Helix galvanized steel inner core.good corrosion resistance,and guarantee a good air permeability.

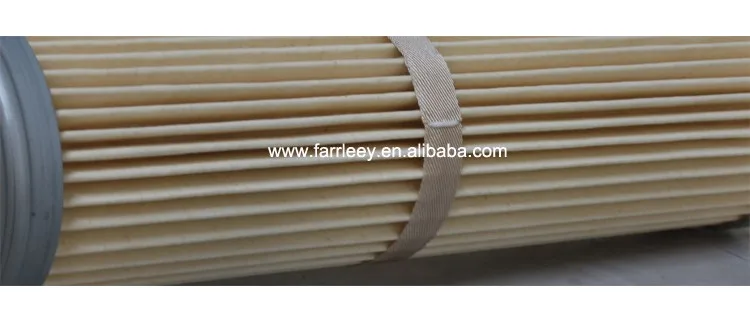

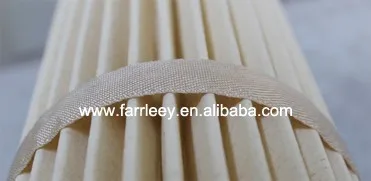

Name:Band
Brand: Farrleey
Original: China

High temperature adhesive band,is not easy to fall off.

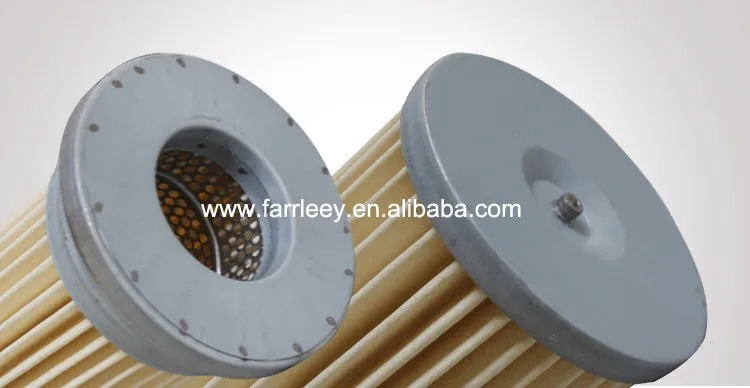

Name: Top & Bottom Cap
Brand: Farrleey
Original: China

Galvanized metal top & bottom end cap,suitable for cell plate size:133 ,162 ,159 mm

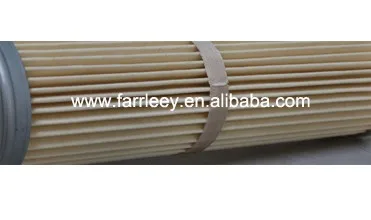

Name: Filter Media
Brand: Farrleey
Original: China

Narrow pleat spacing,easy -cleaning design,high filtration efficiency,2-3 times filtration area  than filter bag


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our factory.

After-Sales Service

* Training how to install the filter cartridge

* ........

Packing & Delivery
Packaging
Pallet  Size
129 (L) * 114 (W) * 215(H)mm
Weight
Depend



Packaging Details
The normal package is carton box,we will pack it with carton and plastic pallet or pack it according to customers special request.
Packaging
Pallet Size
129 (L) * 114 (W) * 215(H)mm
Weight
Depend



Packaging Details
The normal package is carton box,we will pack it with carton and plastic pallet or pack it according to customers special request.
